Rear Suspension for 1996 Ford F-150

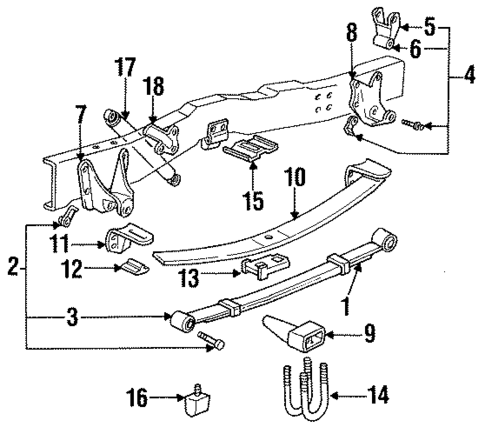

Rear Suspension for 1996 Ford F-150 #0

Rear Suspension for 1996 Ford F-150 #1

Rear Suspension for 1996 Ford F-150 #0

1

1

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

F5TZ5560A - Suspension: Spring Assembly for Ford: F-150, F-250, F-250 HD, F-350 Image

Spring Assembly

Ford

Ford

Positions: Right

Notes: PARTS: Order by description and application.

Description: F250 & 350. F150.

2

EOTZ5630G - Suspension: Spring Assembly Bushing Kit for Ford: F-150 Image

Spring Assembly Bushing Kit

Ford

Ford

Notes: PARTS: Order by description and application.

Description: F150, 2wd.

2

EOTZ5630A - Suspension: Spring Assembly Bushing Kit for Ford: Bronco, F-150, F-250, F-250 HD, F-350, Ranger Image

Spring Assembly Bushing Kit

Ford

Ford

Notes: PARTS: Order by description and application.

Description: F250, f350, f250 2wd. F250, f350, f350 4wd. From 1/83, front. F150, 4wd.

3

F4TZ5781B - Suspension: Spring Assembly Bushing for Ford: F-150, F-250, F-250 HD, F-350 Image

Spring Assembly Bushing

Ford

Ford

Notes: PARTS: Also included with spring assembly.

Description: F250 & 350. F150, 4wd.

3

F4TZ5781A - Suspension: Spring Assembly Bushing for Ford: F-150 Image

Spring Assembly Bushing

Ford

Ford

Notes: PARTS: Also included with spring assembly.

Description: F150, 2wd.

4

E6TZ5630A - Suspension: Spring Assembly Shackle for Ford: F-150 Image

Spring Assembly Shackle

Ford

Ford

Description: F150, 2wd.

4

EOTZ5630B - Suspension: Spring Assembly Shackle for Ford: Bronco, F-150, F-250, F-250 HD, F-350 Image

Spring Assembly Shackle

Ford

Ford

Description: Rear. F250, f350, f350, 2wd, without chassis cab. F150, 4wd.

5

E6TZ5776B - Suspension: Spring Assembly Shackle for Ford: E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, F-150, Ranger Image

Spring Assembly Shackle

Ford

Ford

Description: E150. Ranger. All. F150, 2wd.

5

EOTZ5776A - Suspension: Spring Assembly Shackle for Ford: Bronco, E-150, E-150 Econoline, E-250, E-250 Econoline, E-250 Econoline Club Wagon, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, E-350 Super Duty, E-450 Super Duty, Econoline Super Duty, F-150, F-250, F-250 HD, F-350 Image

Spring Assembly Shackle

Ford

Ford

Description: Rear, e250 & e350. F250, f350, f250 & f350, 2wd, without chassis cab. F250, f350, f350 4wd. F150, 4wd. E-350 Super Duty. E-450 Super Duty. Shackle.

MSRP $98.08

$64.15

MSRP $98.08

$64.15

6

EOTZ5781B - Suspension: Spring Assembly Bushing for Ford: E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, E-250, E-250 Econoline, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, E-350 Super Duty, E-450 Econoline Super Duty, E-450 Super Duty, Econoline Super Duty, F-150, F-250, F-250 HD, F-350 Image

Leaf Spring Rear Bushing

Ford

Ford

Notes: PARTS: Also included with spring assembly.

Description: Rear. F250 & 350. F150, 4wd.

MSRP $61.67

$40.33

MSRP $61.67

$40.33

6

EOTZ5781E - Suspension: Spring Assembly Bushing for Ford: E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, E-250, E-250 Econoline, E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, E-350 Super Duty, E-450 Econoline Super Duty, E-450 Super Duty, Econoline Super Duty, F-150, Ranger Image

Shackle Bushing

Ford

Ford

Notes: PARTS: Also included with spring assembly.

Description: F150, 2wd.

7

EOTZ5775H - Suspension: Spring Assembly Bracket for Ford: Bronco, F-150, F-250, F-250 HD Image

Spring Assembly Front Bracket

Ford

Ford

Description: F250 & 350, f250, 2wd, 136, 138 wb. F250, f350, f250 2wd, 136, 138 whlbase. F150, 4wd. Front.

7

EOTZ5775F - Suspension: Spring Assembly Bracket for Ford: F-150 Image

Spring Assembly Bracket

Ford

Ford

Description: F150, front, 2wd.

8

EOTZ5775B - Suspension: Spring Assembly Bracket for Ford: E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, F-150 Image

Leaf Spring Mount Bracket

Ford

Ford

Description: Rear, e150. F150, 2wd.

8

EOTZ5775C - Suspension: Spring Assembly Bracket for Ford: Bronco, F-150, F-250, F-250 HD, F-350 Image

Spring Assembly Rear Bracket

Ford

Ford

Description: F250, f350, f250 & f350 2wd. F250, f350, f350 4wd. F150, 4wd.

9

EOTZ5729B - Suspension: Spacer for Ford: F-150, F-250, F-250 HD, F-350 Image

Spacer

Ford

Ford

Description: F250 & 350, 4wd. F150, 4wd.

10

E6TZ5588A - Suspension: Spring for Ford: F-150 Image

Spring

Ford

Ford

Description: F150, 2wd.

10

E7TZ5588A - Suspension: Spring for Ford: F-150 Image

Spring

Ford

Ford

Description: F150, 4wd.

11

EOTZ5700B - Suspension: Spring Bracket for Ford: F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty Image

Auxiliary Spring Bracket

Ford

Ford

Description: F250 & 350. F150. F350 chassis cab, F-Super Duty, f350, 133, 155, 168 wb. Front without chassis cab.

MSRP $41.83

$27.36

MSRP $41.83

$27.36

12

E5TZ5A636A - Suspension: Bumper for Ford: F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty Image

Upper Mount Pad

Ford

Ford

Description: F250 & 350. F150. Center, rear.

MSRP $15.42

$10.08

MSRP $15.42

$10.08

13

E6TZ5594A - Suspension: Spacer for Ford: F-150 Image

Spacer

Ford

Ford

Description: F150, 2wd.

13

EOTZ5594B - Suspension: Spacer for Ford: F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty Image

Spacer

Ford

Ford

Description: F250 & 350. F150, 4wd. F350 chassis cab, F-Super Duty, f350, 133, 155, 168 wb.

14

1L3Z5705AA - Suspension: U-Bolt for Ford: F-150, F-150 Heritage Image

U-Bolt

Ford

Ford

Notes: PARTS: Order by description and application.

Description: The Ford 1L3Z-5705-AA Leaf Spring Bolt is a genuine Ford replacement part designed to secure the leaf spring to the vehicle?s chassis. It ensures proper alignment and attachment of the leaf spring, which is a critical component in a vehicle?s suspension sy ...

15

F4TZ5796CA - Suspension: Cap for Ford: E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, F-150, Ranger Image

U-Bolt Mount Plate

Ford

Ford

Description: E150. F150, 2wd.

MSRP $39.78

$26.02

MSRP $39.78

$26.02

15

E2TZ5796D - Suspension: Cap for Ford: F-150 Image

Cap

Ford

Ford

Description: F150, 4wd.

16

EOTZ4730B - Suspension: Bumper for Ford: F-150, F-250, F-250 HD, F-350, F-Super Duty Image

Bumper

Ford

Ford

Notes: PARTS: Order by description and application.

Description: F250 & 350. F150. F350 chassis cab, F-Super Duty.

17

ASHV1022 - Suspension: Motorcraftâ„¢ Shock for Ford: F-150, F-250, F-250 HD, F-350 Image

Kit - Shock Absorber

Ford

Ford

Positions: Left

Notes: PARTS: Order by description and application.

17

ASHV1023 - Suspension: Motorcraftâ„¢ Shock for Ford: Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, F-Super Duty Image

Kit - Shock Absorber

Ford

Ford

Positions: Left

Notes: PARTS: Order by description and application.

17

5U2Z18V125BBA - Suspension: Shock for Ford: Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, F-Super Duty Image

Suspension Shock Absorber

5U2Z-18V125-BBA

Ford

Ford

Positions: Right

Notes: PARTS: Order by description and application.

17

5U2Z18V125BAA - Suspension: Shock for Ford: F-150, F-250, F-250 HD, F-350 Image

Shock Absorber

5U2Z-18V125-BAA

Ford

Ford

Positions: Right

Notes: PARTS: Order by description and application.

Description: F250, f350, f250, 2wd, standard. F150. Lightning pkg.

18

EOTZ18169B - Suspension: Shock Bracket for Ford: Bronco, F-150, F-250, F-250 HD, F-350, F-Super Duty Image

Shock Absorber Upper Bracket

Ford

Ford

Description: F250 & 350, upper. F250, f350. F150. Super duty.

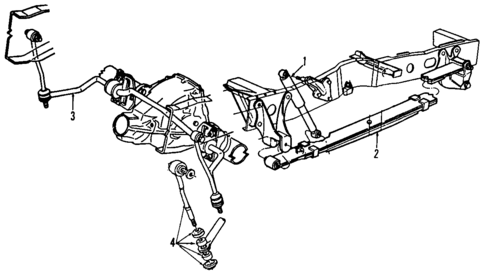

Rear Suspension for 1996 Ford F-150 #1

No.

Part # / Description / Price

Price

1

ASHV1023 - Suspension: Motorcraftâ„¢ Shock Absorber for Ford: Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, F-Super Duty Image

Kit - Shock Absorber

Ford

Ford

1

5U2Z18V125BBA - Suspension: Shock Absorber for Ford: Bronco, F-150, F-250, F-250 HD, F-250 Super Duty, F-350, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, F-Super Duty Image

Suspension Shock Absorber

5U2Z-18V125-BBA

Ford

Ford

2

F2TZ5560G - Suspension: Leaf Spring for Ford: Bronco, F-150, F-250, F-250 HD, F-350, F-Super Duty Image

Leaf Spring

Ford

Ford

Notes: Order By Code.

Description: F250 pick-up. F350 chassis cab, F-Super Duty. F150. Bronco.

4

EOTZ5K484C - Suspension: Link Kit for Ford: Bronco, F-150, F-250, F-250 HD, F-350 Image

Stabilizer Bar Link Assembly

Ford

Ford

Description: Bronco. 2wd. F150, 2wd. F250 pick-up. 2wd.

4

EOTZ5K484B - Suspension: Link Kit for Ford: Bronco, F-150, F-250, F-250 HD, F-350 Image

Link Link Kit

Ford

Ford

Description: Bronco. F150, 4wd. F250 pick-up. 4wd.
